● Tactile Trumpet Valve Control: Features an ergonomic trumpet design with color-coded buttons for intuitive, precise one-handed operation during irrigation and suction .
● Versatile Clinical Configurations: Provides multiple cannula lengths (330mm and 450mm) and a specialized 45° Elbow option to significantly enhance instrument accessibility in complex laparoscopic procedures .
● High-Performance Fluid Management: Equipped with 12ft (approx. 3.6m) soft, low-torque medical-grade tubing with Single or Dual Spike options to ensure stable and continuous flow.
● Uncompromised Surgical Safety: Utilizes high-quality DEHP-free materials and offers choices between anti-glare or non-conductive cannulas to provide comprehensive protection for patients and medical staff .
● Certified Global Compliance: Fully CE MDR and CFDA certified, meeting the world’s most stringent safety standards for surgical consumables and serving as your most reliable supply chain partner.
● Application: Laparoscopic / Endoscopic surgery (Available in 5/10mm diameters & 45° Elbow options).
Surgical Suction Irrigation System
Products
ASI-0007-000, ASI-0085-000, ASI-0086-000, ASI-0087-000, ASI-0089-000
Disposable Surgical Suction Irrigation System (Trumpet Valve) - CE MDR & CFDA Certified
InquiryDescription
Professional Solution for Laparoscopic Cleansing

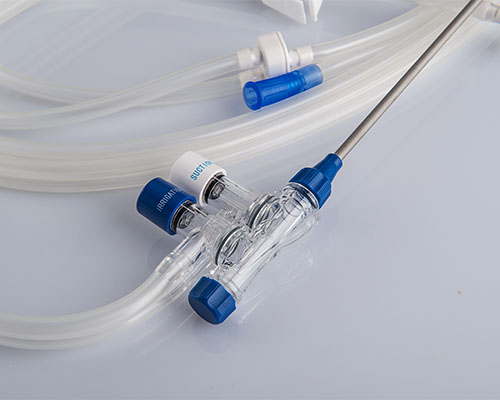

The Disposable Surgical Suction Irrigation System (Trumpet Valve Type) is a premium, single-use medical device specifically engineered for the effective cleansing of the abdominal cavity and the rapid aspiration of surgical debris during laparoscopic and endoscopic procedures. By utilizing a sterile, single-use model, Senmed ensures a safe surgical environment that eliminates the risk of patient cross-infection.
Our trumpet-style set features an ergonomic design with color-coded buttons for intuitive, one-handed operation, providing surgeons with natural tactile feedback and precise fluid control throughout the procedure.

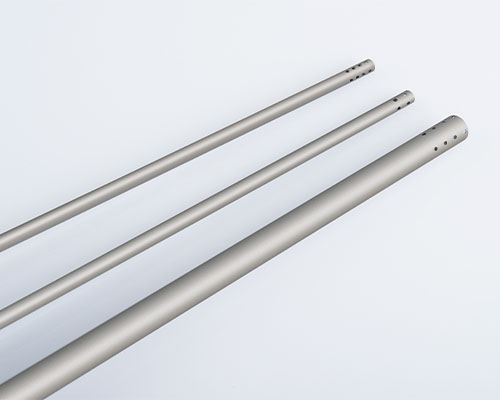

For maximum clinical flexibility, the system is available in 5mm and 10mm instrumentation diameters, with options for 45° elbow cannulas to enhance surgical visibility and access. Multiple cannula length options (e.g., 330mm and 450mm) support different anatomy and port placement requirements. Each set is equipped with 12ft (3.6m) DEHP-free medical-grade tubing with single spike or dual spike configuration options and is fully CE MDR and CFDA certified to meet the highest international quality and safety standards.
Clinical Applications
This Trumpet Valve suction and irrigation system is designed for stable fluid management and debris aspiration in minimally invasive surgery. It is commonly applied in:
- Laparoscopic General Surgery – abdominal cavity cleansing and operative field control during procedures such as cholecystectomy, appendectomy, and hernia repair.
- Gynecological Laparoscopy – irrigation and suction support during hysterectomy, ovarian cystectomy, adnexal surgery, and other pelvic procedures.
- Urological Endoscopic & Laparoscopic Procedures – controlled suction and flushing to maintain clear visibility in minimally invasive urology surgeries.
- Colorectal & Gastrointestinal Laparoscopy – fluid control and debris removal during laparoscopic colorectal interventions.
- Complex Access & Confined-Angle Procedures – improved instrument reach and access using 45° elbow cannula options, especially when port angles or working space are limited.
Compatible Instruments & Equipment
The system is designed to integrate seamlessly with standard operating room equipment and laparoscopic instrument setups, including:
- 5mm and 10mm trocars and laparoscopic ports
- Wall suction systems, vacuum regulators, and suction canisters
- Irrigation fluid sources (spike connection), supporting single spike or dual spike tubing configurations
- Laparoscopic and endoscopic imaging systems for clear operative field visualization
- OR fluid management accessories and disposable tubing sets
Cannula length options (e.g., 330mm / 450mm) and the 45° elbow configuration help optimize instrument access and viewing angles across different laparoscopic setups, while DEHP-free materials support safety and compliance requirements for global supply chains.
Surgical Suction Irrigation System
Feature
Surgical Suction Irrigation Systeme Clinical Benefits
- CE MDR & CFDA Certified: Guaranteed compliance with international medical regulations.
- Intuitive Control: Integrated trumpet valve for effortless, one-handed surgical flushing and suction.
- Anti-Glare Technology: Optional anti-glare cannula or non-conductive plastic cannula to prevent visual interference.
- Safety Tubing: 12ft soft, low-torque, DEHP-free medical-grade tubing.
- Infection Control: Strictly for single-use to eliminate the risk of patient cross-infection.
Specification
Surgical Suction Irrigation System Spec:
| Item No. | Description | Cannula | Package |
|---|---|---|---|
| ASI-0007-000 | Trumpet type, 12ft., Dual Spike | 5x330mm | 12 PCS/CTN |
| ASI-0085-000 | Trumpet type, 12ft., Single Spike | 5x330mm | 12 PCS/CTN |
| ASI-0086-000 | Trumpet type 12ft., Dual Spike | 5x450mm | 12 PCS/CTN |
| ASI-0087-000 | Trumpet type 12ft., Dual Spike | 10x330mm | 12 PCS/CTN |
| ASI-0089-000 | Trumpet type 12ft., Dual Spike |
5x330mm (45°Elbow) |
12 PCS/CTN |
